ASTM A182 304H WN Duplex Stainless Steel Flange RF 400# 26-60NPS ASME B16.47
1. Flange Specification:
Flange
NPS | Outside | Minimum
Thickness | O.D. of | Hub Diam. | Length | Approx. Weight (lbs) | Drilling |
| Raised | Thru Hub |
| Diam. | Face | No. Holes | Diam. | Bolt Circle |
| | | Holes | Diam. |
| 26 | 38.25 | 3.5 | 29.5 | 28.62 | 7.62 | 650 | 28 | 1.88 | 34.5 |
| 28 | 40.75 | 3.75 | 31.5 | 30.81 | 8.12 | 785 | 28 | 2 | 37 |
| 30 | 43 | 4 | 33.75 | 32.94 | 8.62 | 905 | 28 | 2.62 | 39.25 |
| 32 | 45.25 | 4.25 | 36 | 35 | 9.12 | 1065 | 28 | 2.62 | 41.25 |
| 34 | 47.5 | 4.38 | 38 | 37.81 | 9.5 | 1200 | 28 | 2.62 | 43.5 |
| 36 | 50 | 4.5 | 40.25 | 39.38 | 9.88 | 1340 | 32 | 2.62 | 46 |
| 38 | 47.5 | 4.88 | 40.75 | 39.5 | 8.12 | 935 | 32 | 1.88 | 44 |
| 40 | 50 | 5.12 | 43 | 41.5 | 8.5 | 1090 | 32 | 2 | 46.25 |
| 42 | 52 | 5.25 | 45 | 43.62 | 8.81 | 1190 | 32 | 2 | 48.25 |
| 44 | 54.5 | 5.5 | 47.25 | 43.62 | 9.18 | 1375 | 32 | 2.62 | 50.5 |
| 46 | 56.75 | 5.75 | 49.5 | 47.75 | 9.62 | 1525 | 36 | 2.62 | 52.75 |
| 48 | 59.5 | 6 | 51.5 | 49.88 | 10.12 | 1790 | 28 | 2.38 | 55.25 |
| 50 | 61.75 | 6.19 | 53.62 | 52 | 10.56 | 1950 | 32 | 2.38 | 57.5 |
| 52 | 63.75 | 6.38 | 55.62 | 54 | 10.88 | 2125 | 32 | 2.38 | 59.5 |
| 54 | 67 | 6.69 | 57.88 | 56.12 | 11.38 | 2565 | 28 | 2.62 | 62.25 |
| 56 | 69 | 6.88 | 60.12 | 58.25 | 11.75 | 2710 | 32 | 2.62 | 64.25 |
| 58 | 71 | 7 | 62.12 | 60.25 | 12.06 | 3230 | 32 | 2.62 | 66.25 |
| 60 | 74.25 | 7.31 | 64.38 | 62.38 | 12.56 | 3820 | 32 | 2.88 | 69 |
2.304L Stainless Steel escription
Alloy 304/304H (UNS S30400/ S30409) is a modification of the most widely utilized "18-8" chromium-
nickel austenitic stainless steel. The carbon content is controlled in the range of 0.04-0.10% for
increased strength at temperatures above 800°F (427°C). It is an economical and versatile corrosion
resistant alloy suitable for a wide range of general purpose applications.
It is common practice for 304H to be dual certified as 304 and 304H. The high carbon chemistry of
304H enables 304 to meet the mechanical properties and grain size requirements of 304H.
Alloy 304/304H has general corrosion resistance similar to 304/304L. It resists atmospheric corrosion,
as well as, moderately oxidizing and reducing environments. However, because of its high carbon
content, Alloy 304/304H is subject to carbide precipitation in the heat affected zone of welds.
Alloy 304/304H is non-magnetic in the annealed condition, but can become slightly magnetic as a result
of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
3.304H Stainless Steel WN Flange Packaging
304H Stainless Steel WN Flanges are widely used in various industries including petrochemical, oil and
gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper
manufacturing, textiles and others. All our 304H Stainless Steel WN Flanges are manufactured in
accordance with international standards. 304H Stainless Steel WN Flanges are packaged to ensure that
there is no damage during transit. In case of exports, standard export packaging is done in wooden cases.
All 304H Stainless Steel WN Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On
special requests we can also, make custom marking on 304H Stainless Steel WN Flanges.
4.Delivery:
Port:
Tianjin/Shanghai/Ningbo
Lead Time :
| Quantity(Pieces) | 1 - 100 | >100 |
| Est. Time(days) | 15-30 | To be negotiated
|
5.Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)
Product Tags:
|
|

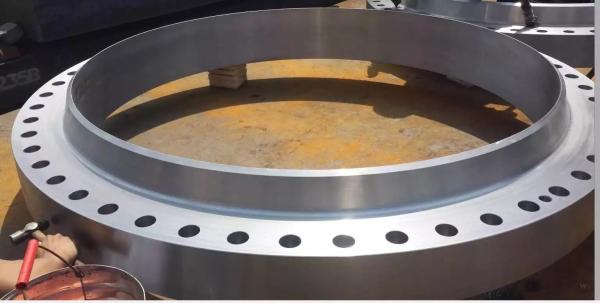

ASTM A182 304H WN Flange RF 400# 26 - 60NPS ASME B16.47 Forged Process Images
|
